Excel Charts : Excel Pie Chart With Individual Slice Radius

| | Information Helpful? Why Not Donate.

TRY OUT: Smart-VBA | Code-VBA | Analyzer-XL | Downloader-XL | Trader-XL| More Free Downloads.. Best Value: Finance Templates Bundle

Also see our huge range ofCharting Software . Got a Excel Chart question? Use our FREEExcel Help

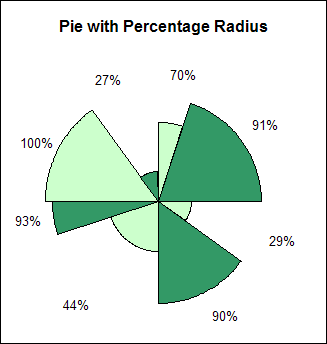

Chart is a filled radar chart with multiple series.

Below is the chart data. In the range B2:B9 is the value of each slice within the pie. The range C2:C9 is the percentage radius for each slice.
Values in J1:Q4 are derived from formula in order to calculate the angles and length of each slice.

	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q
1		Slice Value	Slice %					% Value		0.702893488	0.908775735	0.294791895	0.903831326	0.43898482	0.934085161	1	0.268068474
2	a	1	70%					% of 360�		0.05	0.2	0.1	0.15	0.2	0.05	0.15	0.1
3	b	4	91%					Start Angle		0	18	90	126	180	252	270	324
4	c	2	29%					Finish Angle		18	90	126	180	252	270	324	360
5	d	3	90%					Category Names		a	b	c	d	e	f	g	h
6	e	4	44%					Angles	0	0.702893488	0	0	0	0	0	0	0
7	f	1	93%						1	0.702893488	0	0	0	0	0	0	0
8	g	3	100%						2	0.702893488	0	0	0	0	0	0	0
9	h	2	27%						3	0.702893488	0	0	0	0	0	0	0

Here are some of the formulae

	H	I	J	K	L
1	% Value		=C2	=C3	=C4
2	% of 360�		=B2/SUM($B$2:$B$9)	=B3/SUM($B$2:$B$9)	=B4/SUM($B$2:$B$9)
3	Start Angle		=360*SUM($I$2:I2)	=360*SUM($I$2:J2)	=360*SUM($I$2:K2)
4	Finish Angle		=360*SUM($J$2:J2)	=360*SUM($J$2:K2)	=360*SUM($J$2:L2)
5	Category Names		=A2	=A3	=A4
6	Angles	0	=IF(AND($I6>=J$3,$I6<=J$4),J$1,0)	=IF(AND($I6>=K$3,$I6<=K$4),K$1,0)	=IF(AND($I6>=L$3,$I6<=L$4),L$1,0)
7		1	=IF(AND($I7>=J$3,$I7<=J$4),J$1,0)	=IF(AND($I7>=K$3,$I7<=K$4),K$1,0)	=IF(AND($I7>=L$3,$I7<=L$4),L$1,0)
8		2	=IF(AND($I8>=J$3,$I8<=J$4),J$1,0)	=IF(AND($I8>=K$3,$I8<=K$4),K$1,0)	=IF(AND($I8>=L$3,$I8<=L$4),L$1,0)
9		3	=IF(AND($I9>=J$3,$I9<=J$4),J$1,0)	=IF(AND($I9>=K$3,$I9<=K$4),K$1,0)	=IF(AND($I9>=L$3,$I9<=L$4),L$1,0)

Create a standard Filled Radar chart from the data in range I5:Q366

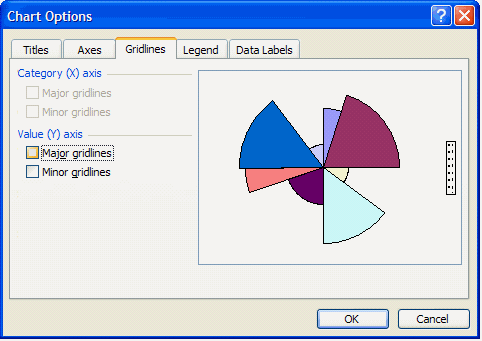

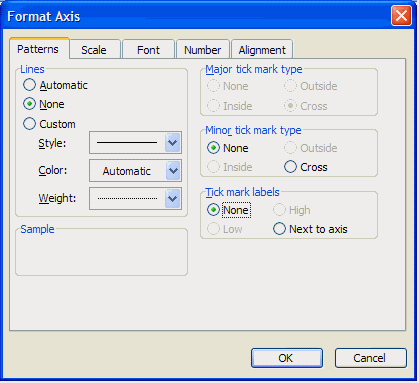

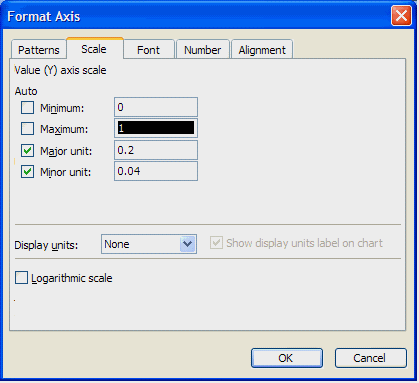

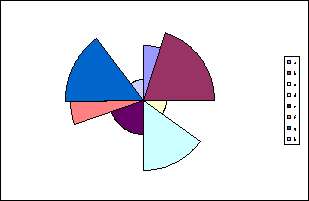

Format the Value axis to remove lines and tick mark labels. Set the Minimum value to 0 and the Maximum value to 1. Use the Chart Options dialog to clear Major gridlines. Finally select and clear the Category labels.

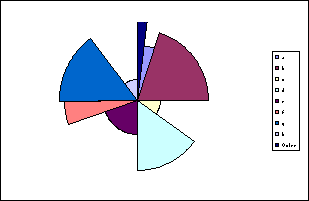

If you want to display the slices then you need to add another series and plot it on the secondary axis. Add the range A1:B9 to the chart.

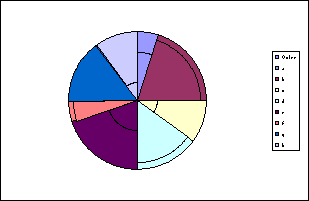

Select the new series and change the chart type to Pie.

Download Example workbook with data and formula
