Back to Excel Charts Index
Step by step instructions for creating a chart that displays a value label on the last point. Based on the data below.
A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|
1 | | Series 1 | Series 2 | Series 3 | Label Last 1 | Label Last 2 | Label Last 3 |
2 | A | 2.8 | 4.5 | 8.3 | =IF($A3="",B2,NA()) | =IF($A3="",C2,NA()) | =IF($A3="",D2,NA()) |
3 | B | 0.9 | 2.3 | 4.1 | =IF($A4="",B3,NA()) | =IF($A4="",C3,NA()) | =IF($A4="",D3,NA()) |
4 | C | 0.5 | 2.8 | 6.2 | =IF($A5="",B4,NA()) | =IF($A5="",C4,NA()) | =IF($A5="",D4,NA()) |
5 | D | 2.1 | 3.1 | 4.1 | =IF($A6="",B5,NA()) | =IF($A6="",C5,NA()) | =IF($A6="",D5,NA()) |
6 | E | 0.8 | 2.6 | 5.5 | =IF($A7="",B6,NA()) | =IF($A7="",C6,NA()) | =IF($A7="",D6,NA()) |
7 | F | 0.9 | 2.5 | 6.1 | =IF($A8="",B7,NA()) | =IF($A8="",C7,NA()) | =IF($A8="",D7,NA()) |
8 | G | 3.5 | 6 | 7.8 | =IF($A9="",B8,NA()) | =IF($A9="",C8,NA()) | =IF($A9="",D8,NA()) |
9 | H | 0.3 | 5 | 8.1 | =IF($A10="",B9,NA()) | =IF($A10="",C9,NA()) | =IF($A10="",D9,NA()) |
10 |

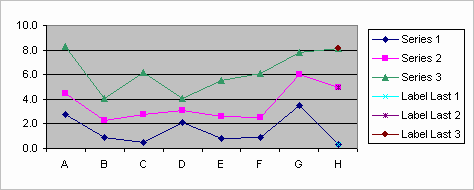

Use the chart wizard to create a line chart based on A1:G9

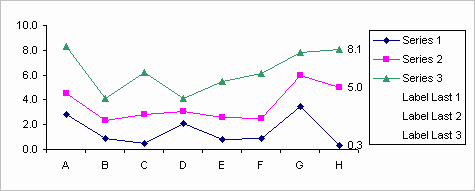

Select the 4th data series 'Label Last 1' and format series to have border and marker None. Also enabled Data Label Value. Repeat for 5th and 6th data series.
Format the plot area as required. Here I have removed the border, major gridlines and changed the plot area color.

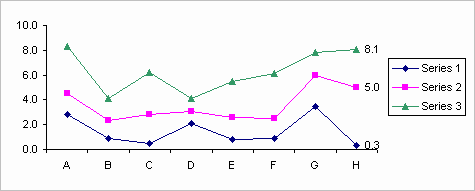

Finally remove the additional data series from the legend.
Select the legend and then select the data series. Make sure the selection include both marker and text otherwise the data will be deleted.

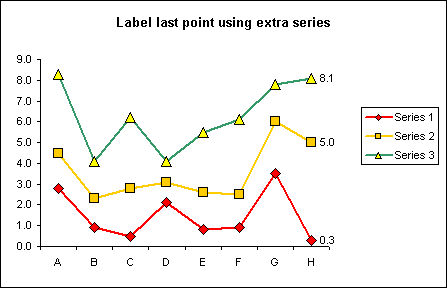

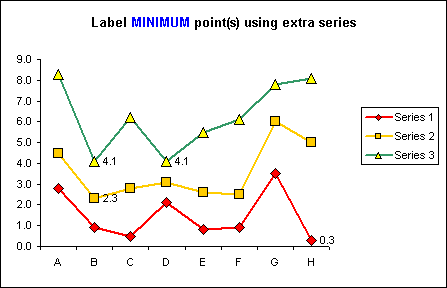

Here are some other examples of alternative methods and application.
The workbook contains step by step explanations on how to construct the charts using all of the different methods.
Back to Excel Charts Index
