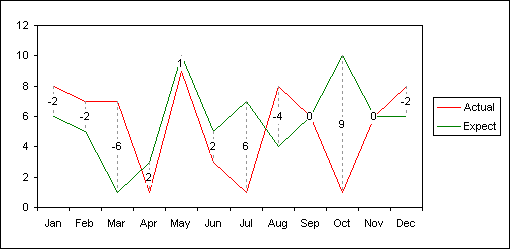

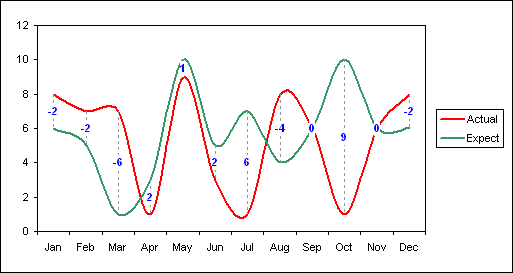

Use an additional data series plotted on the secondary axis to add values to the high-low lines.
| A | B | C | D | E | |
| 1 | Actual | Expect | HI-Lo | Label | |
| 2 | Jan | 8 | 6 | =B2+((C2-B2)/2) | =C2-B2 |
| 3 | Feb | 7 | 5 | =B3+((C3-B3)/2) | =C3-B3 |
| 4 | Mar | 7 | 1 | =B4+((C4-B4)/2) | =C4-B4 |
| 5 | Apr | 1 | 3 | =B5+((C5-B5)/2) | =C5-B5 |
| 6 | May | 9 | 10 | =B6+((C6-B6)/2) | =C6-B6 |
| 7 | Jun | 3 | 5 | =B7+((C7-B7)/2) | =C7-B7 |
| 8 | Jul | 1 | 7 | =B8+((C8-B8)/2) | =C8-B8 |
| 9 | Aug | 8 | 4 | =B9+((C9-B9)/2) | =C9-B9 |
| 10 | Sep | 6 | 6 | =B10+((C10-B10)/2) | =C10-B10 |
| 11 | Oct | 1 | 10 | =B11+((C11-B11)/2) | =C11-B11 |
| 12 | Nov | 6 | 6 | =B12+((C12-B12)/2) | =C12-B12 |
| 13 | Dec | 8 | 6 | =B13+((C13-B13)/2) | =C13-B13 |
The formulas in column D define the mid-point position between the 2 lines. The formulas in column E define the actual distance between the 2 lines and are also used as the category labels for the secondary x axis. Whilst the secondary x axis is not displayed the values can be used automatically by the data labels.

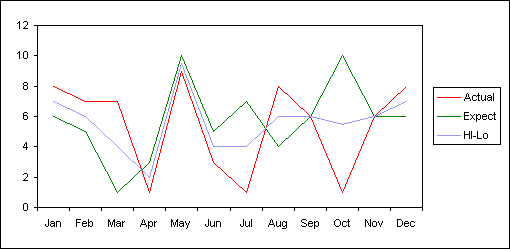

Using the chart wizard create a line chart based on the range A1:D13

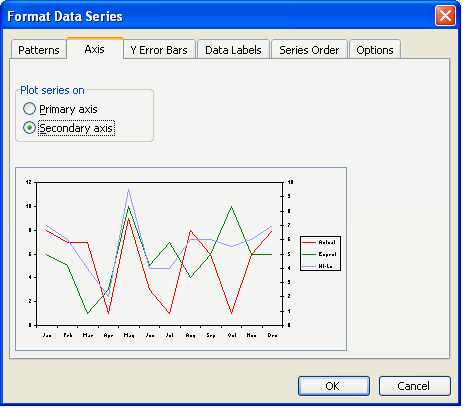

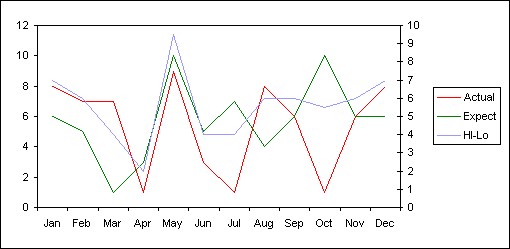

Double click the Hi-Lo data series and change the series to the secondary axis.

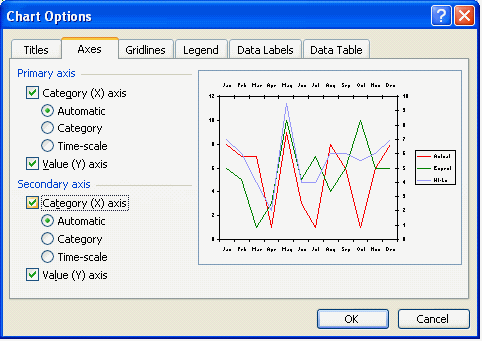

Use the chart options dialog to enable the secondary x axis.

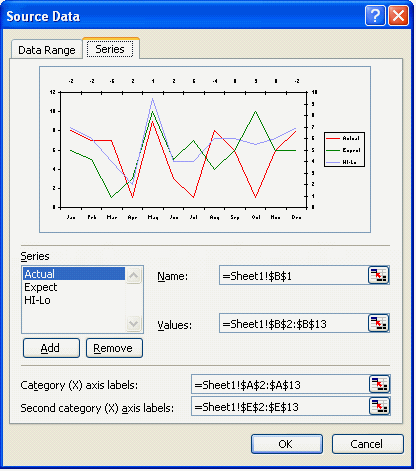

Use the Source data dialog do set the secondary category axis labels to the range E2:E13.

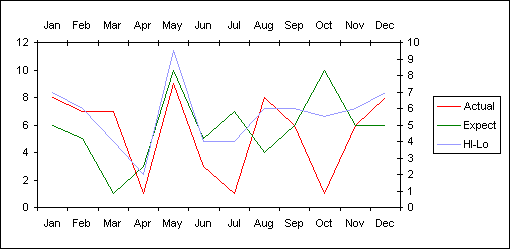

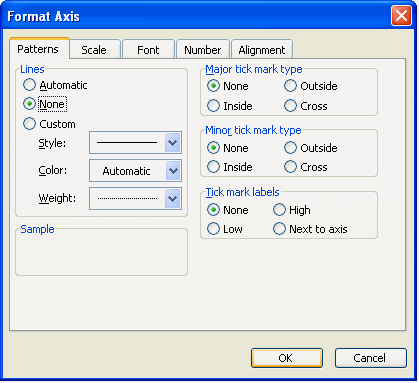

Format the secondary x axis so the tick marks and labels are not displayed.

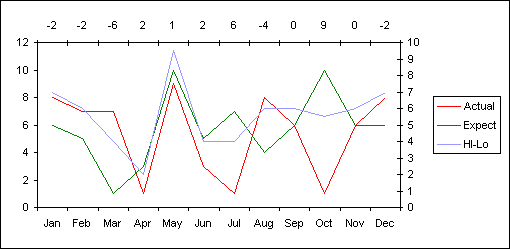

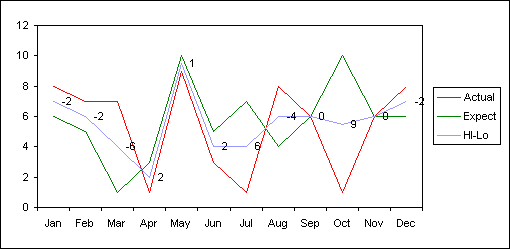

Apply data labels to the Hi-Lo series. Display the Category values. (for older version of Excel that's display the Show Label option).

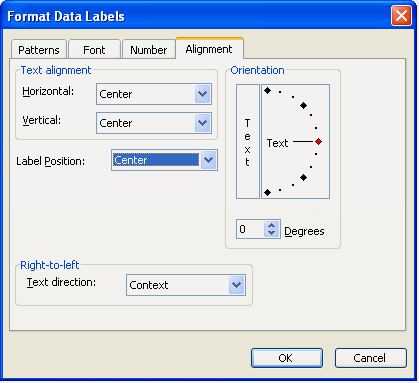

Double click the data labels and change the label position to Center.

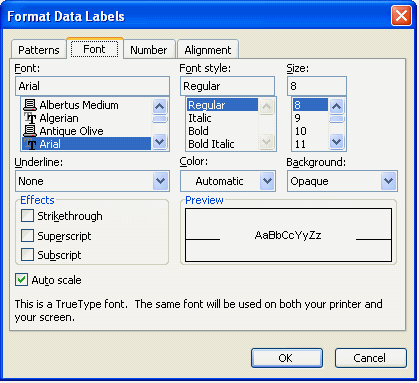

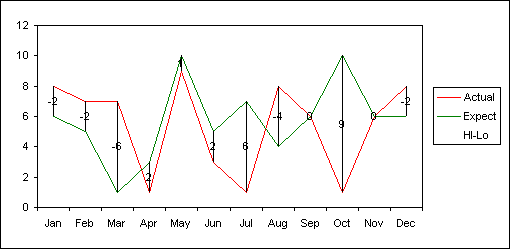

Final tidy up the formatting of the high-low lines. Set the background font to Opaque so the values are not obscured by the lines. Remove the extra data series from the legend.
